SPECIFICATIONS	MODEL# ATV-01 \| RTQ-260W
Engine Info
Engine Size	260cc
Cooling	water cooled
Carburation	single
Ignition	key
Power	N/A
Starter	electric start
Drive Train
Transmission	CVT
Gears/Pattern	N/A
Driveline	Shaft
Chassis and Suspension
Front Suspension	Single A-Arms
Rear Suspension	single non-adjustable
Brakes, Rim and Tire
Front Brake	drum
Rear Brake	disc
Front Tire	23X7-10
Rear Tire	22X10-10
Dimensions
OA Length:	75 inches
OA Height:	55.25 inches
Wheelbase:	49 inches
Height to Seat:	32 inches
Heigth to Handle Bar:	45 inches
Overall Width: (Includes Handle Bars)	41 inches
Width of Vehicle:	41 inches
Ground Clearance:	6 inches
Box dimensions
Carton Size	LXWXH
GW/NW	XXXlbs / XXXlbs
Shipping Info
Units Per Pallet	X
Units Per 20'	X
Units Per 40'HQ	X

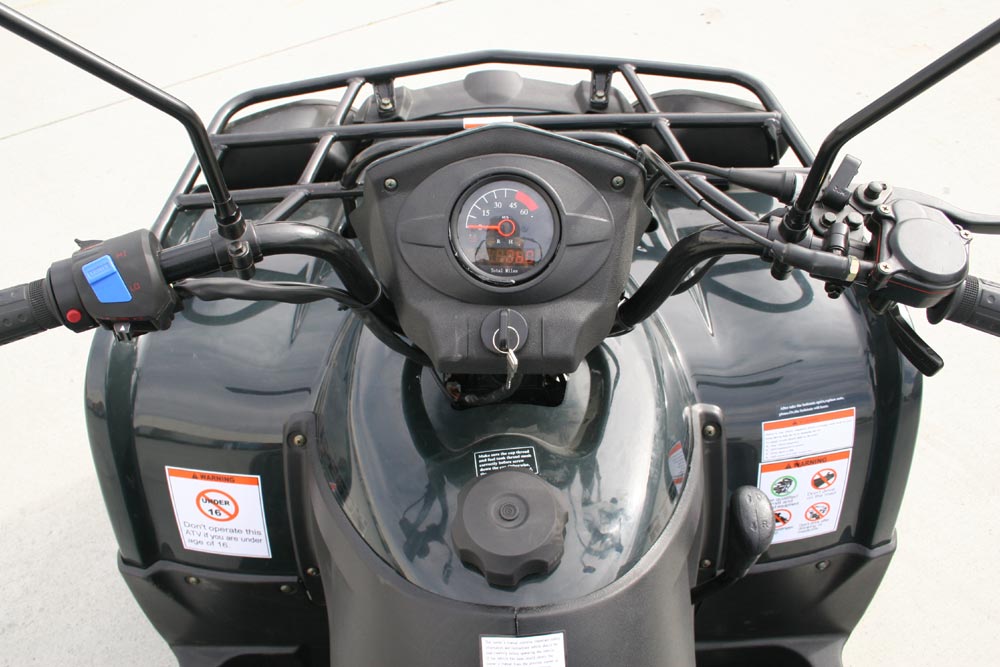

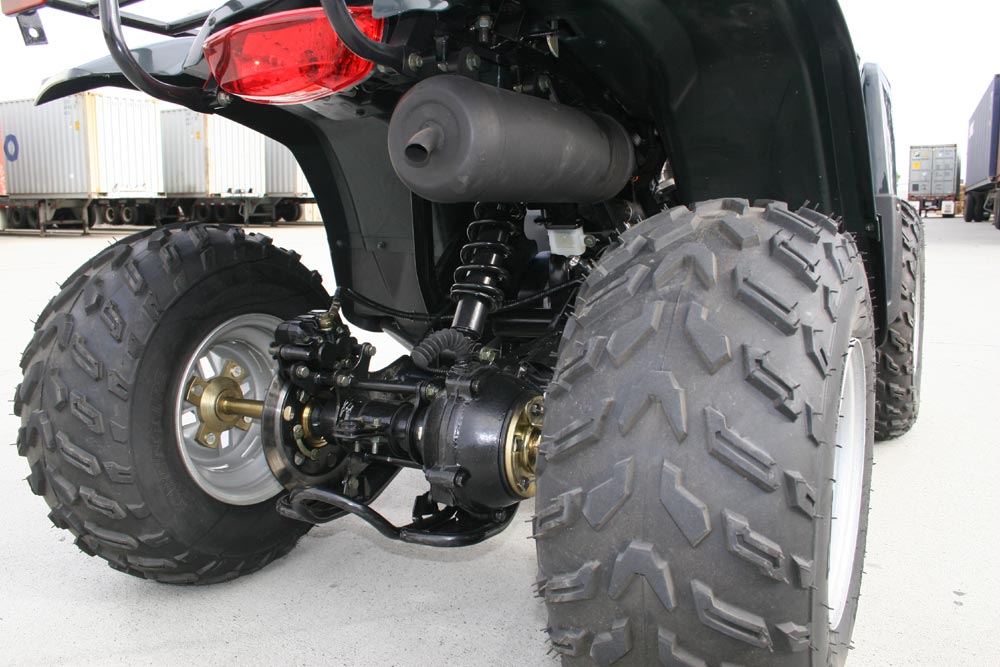

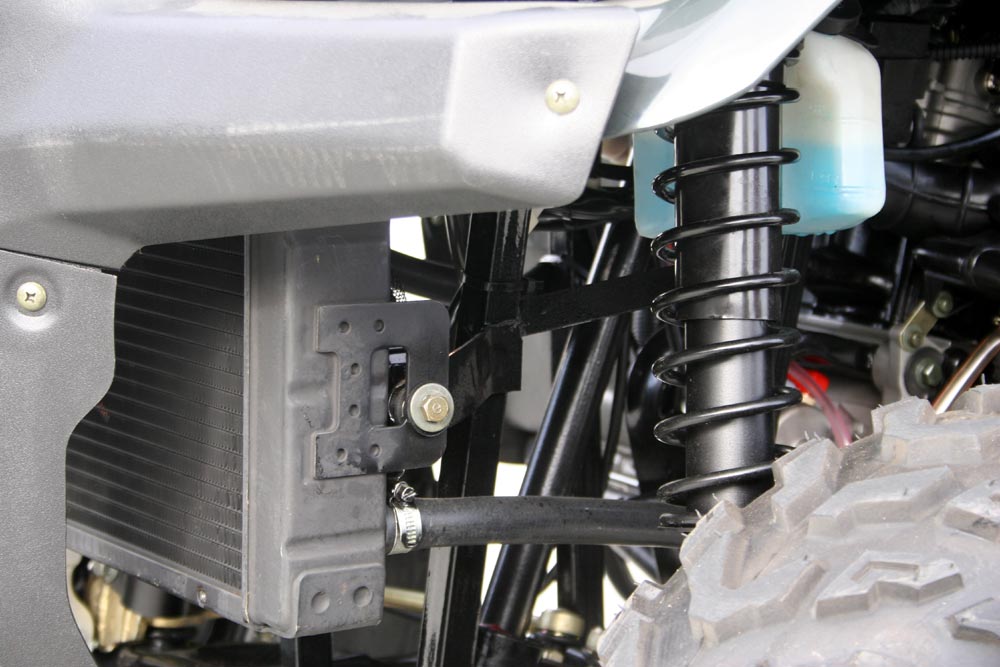

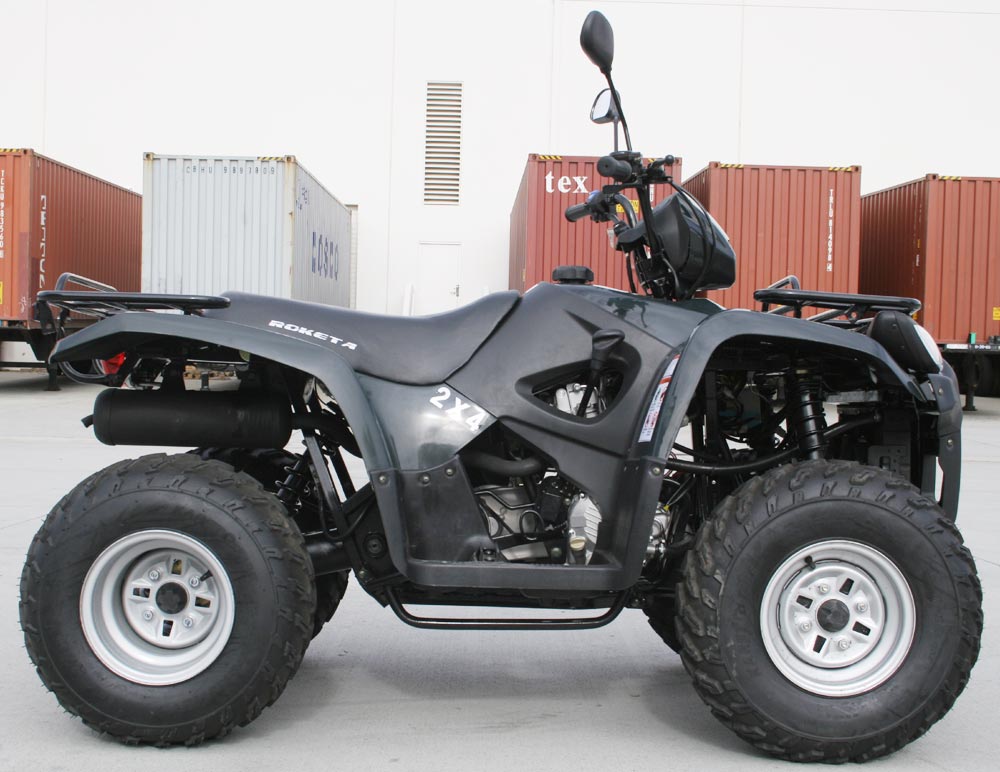

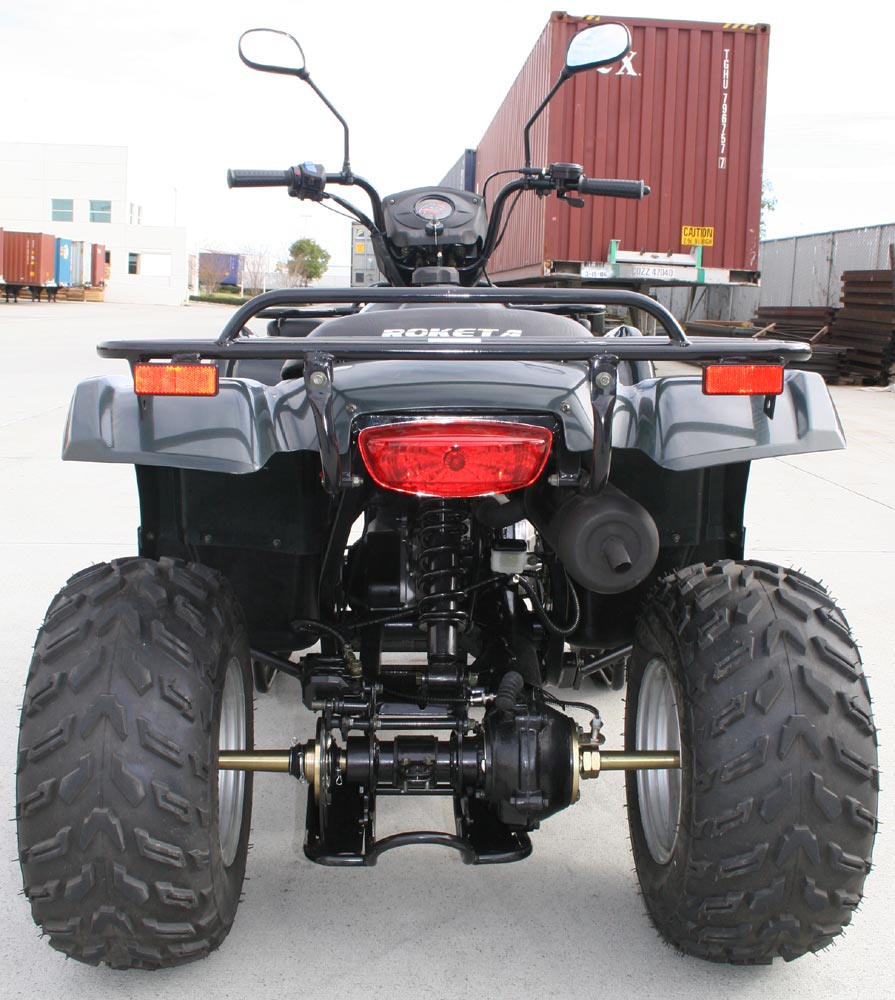

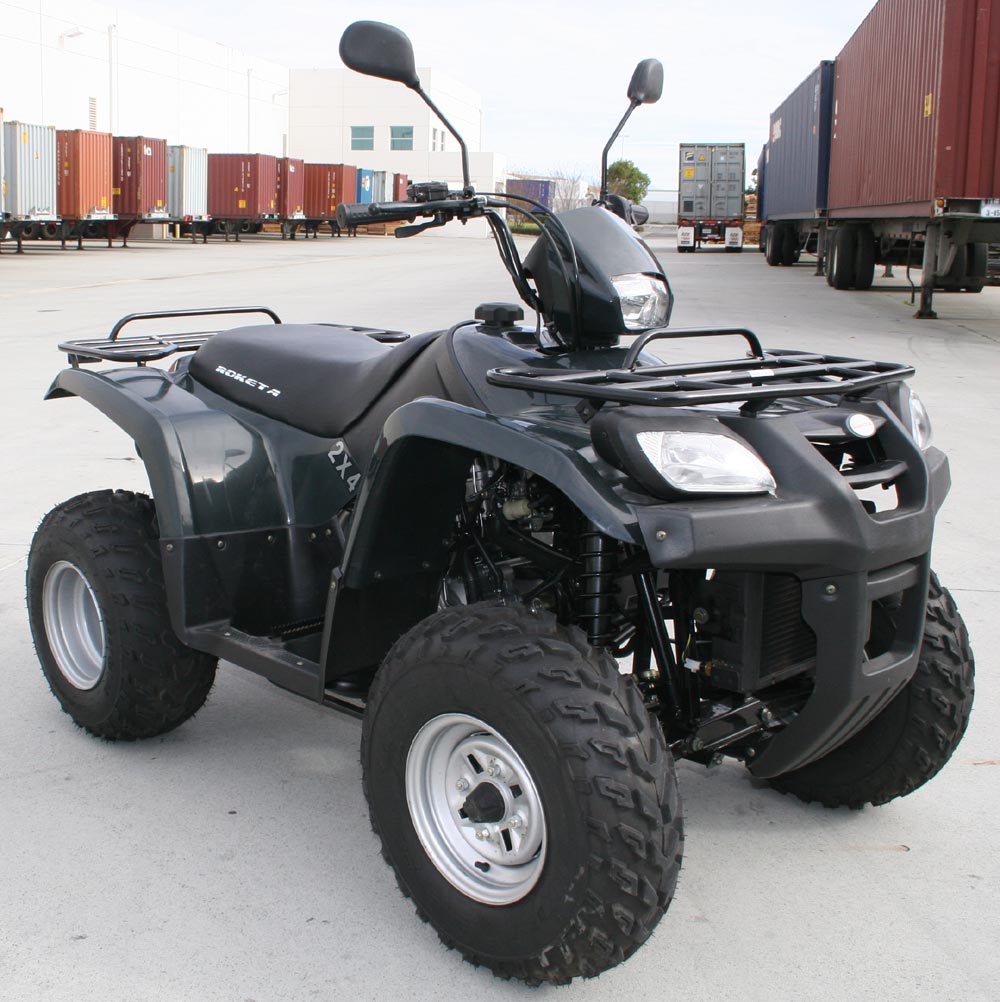

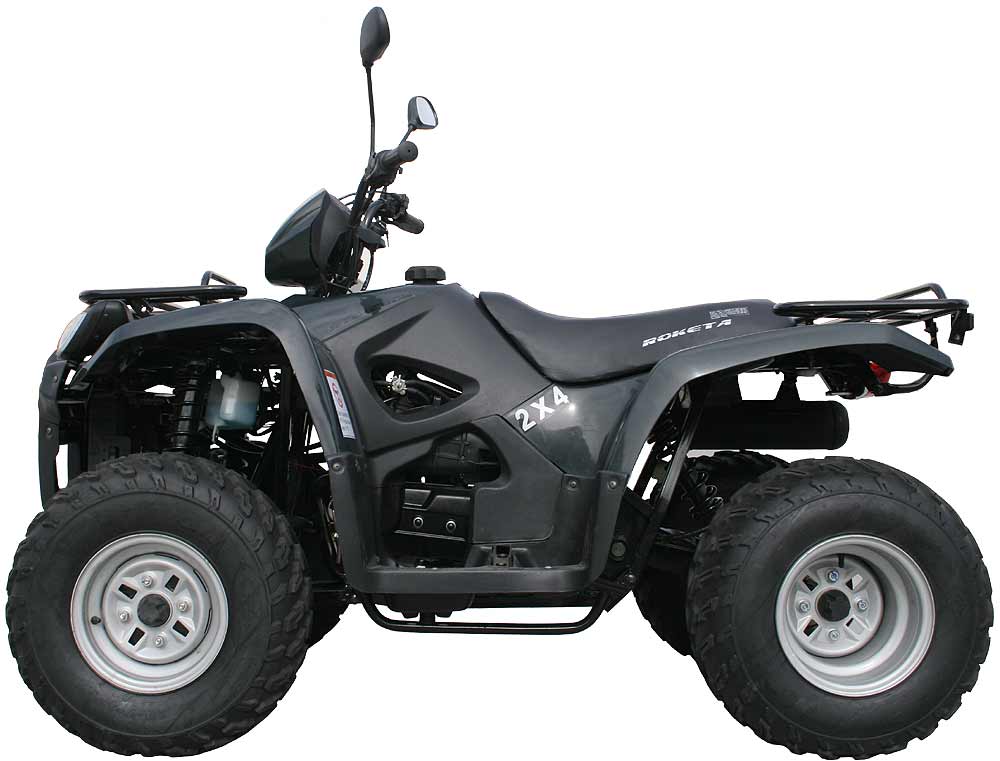

Additional Photos:

View Part:

- Body Assembly
- Frame Assembly

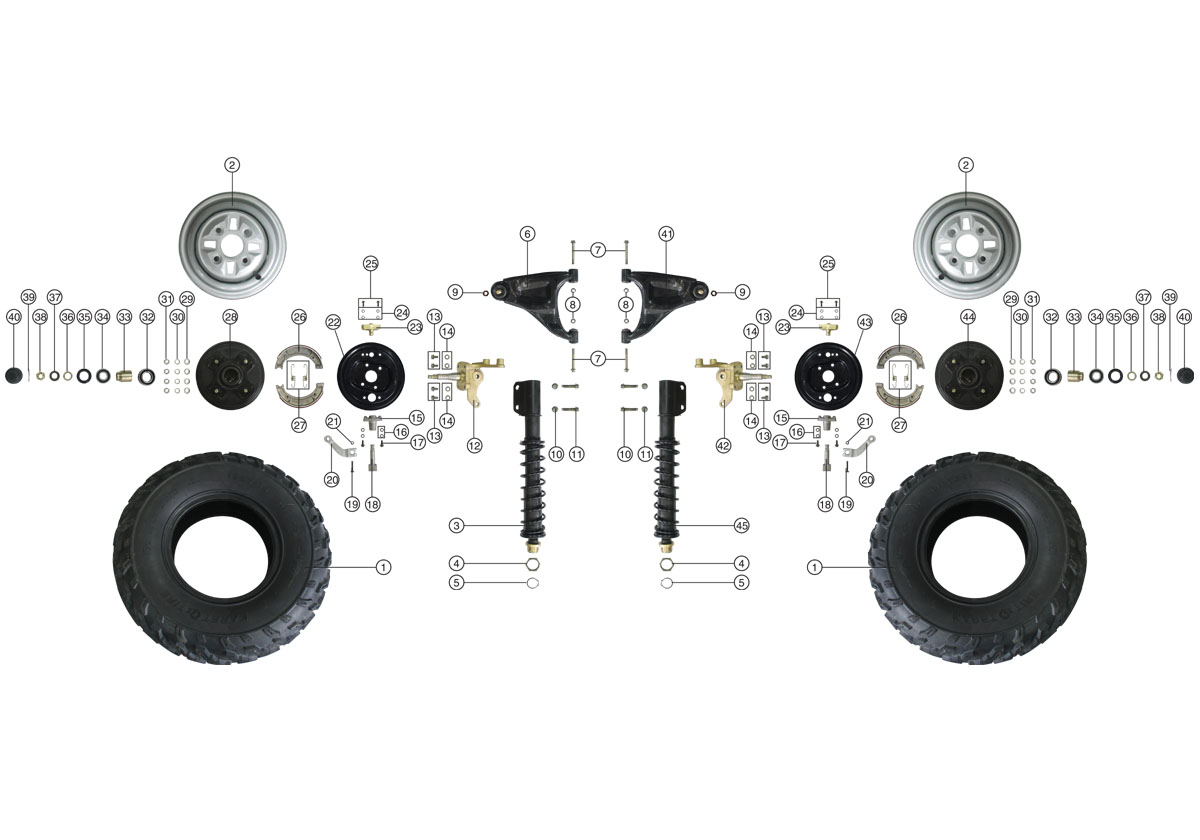

- Front Wheel Assembly
- Rear Wheel Assembly
- Wiring Assembly
